What is the Difference Between RHJ-A / B / C / D Vacuum Homogenizer Emulsifier?

Performance characteristics of various vacuum emulsion mixer.

Vacuum homogenizing emulsifier is the main machine for producing cosmetic creams, but the vacuum homogenizing emulsifying mixer machine is divided into RHJ-A, RHJ-B, RHJ-C, RHJ-D according to the location of the homogenizer and the appearance of the machine, and the performance and characteristics of each model are different.

1. Performance and Characteristics of RHJ-A Vacuum Homogenizer Emulsifier

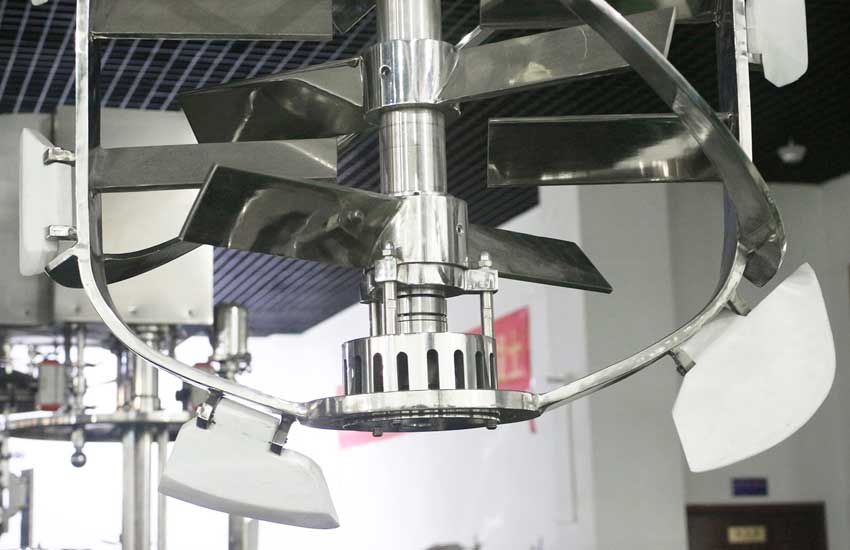

1). The composite scraper stirring paddle is suitable for various complex formulas to achieve optimized energy efficiency.

2). The PTFE scraper can cater to the shape of the stirring tank at any time and scrape the sticky material on the pot wall.

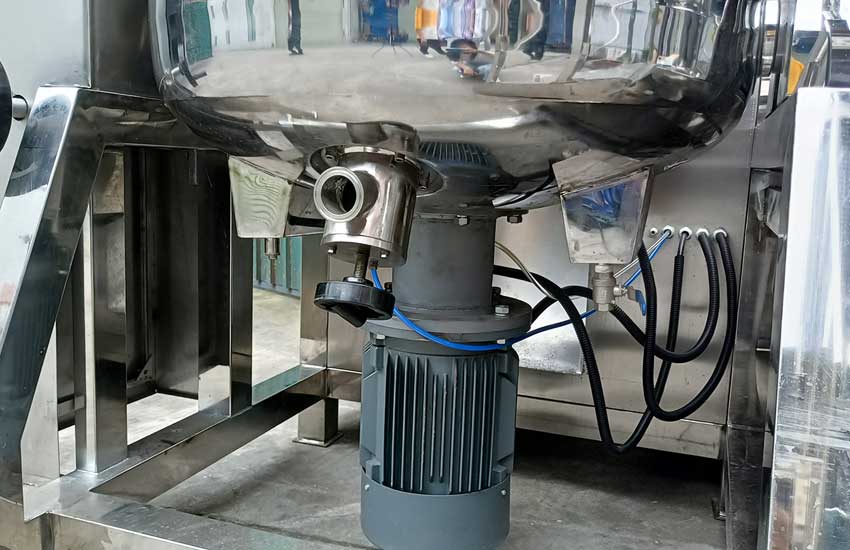

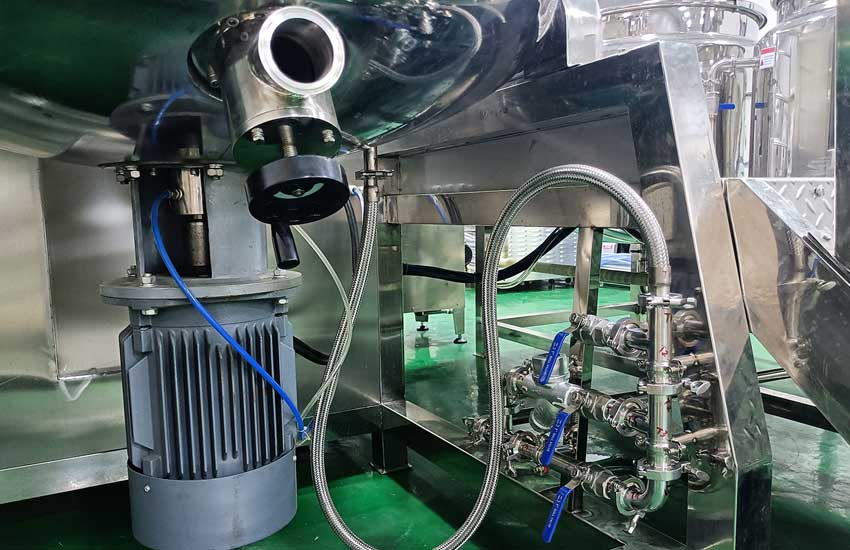

3). The homogenizer is installed at the bottom of the vacuum homogenizing emulsification machine pot, which can increase the power of the motor, making it more thorough and powerful. In small production, it can also give full play to the homogenization effect.

4). The rotor of the powerfully balanced isotactic curve is equipped with the stator of the corresponding structure to realize the high-energy shearing, grinding and centrifugation of the fluid, so as to ensure that the paste is delicate and smooth; the surface of the vacuum homogenizer cream mixer pot and the pipe is mirror-polished to 300EMSH (sanitary level), conforming to Japan Chemical and GMP standards. Customers can choose a frequency conversion speed regulating homogenizer with a maximum speed of 4500 rpm.

2. Performance and Characteristics of RHJ-B Vacuum Homogenizer Emulsifier

1). Vacuum homogenizer mixer without hydraulics, Homogenizing motor is two-speed, low speed 1500 rpm for 1 minute with dry material, high speed 3000rpm.

2). Continuous work has a large processing capacity and can be recycled and homogeneously discharged, which is convenient and fast.

3). Simple operation, better emulsification and homogenization effect.

4). The water circulation homogeneous sealing structure of British Crane Company overcomes the problem of ordinary sealing leakage; it will not burn the sealing ring under high viscosity or no material state.

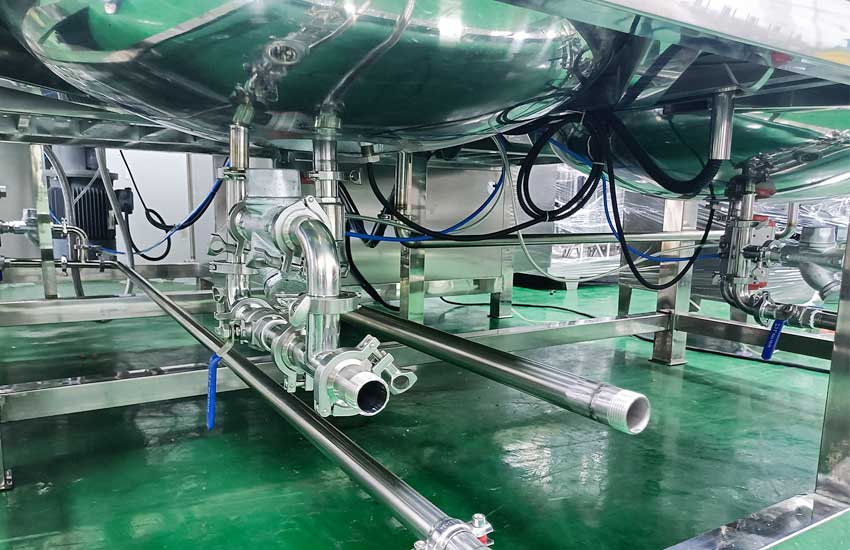

5). The CIP cleaning system is configured through the external circulation pipeline, so that Mixing tank Vacuum homogenizer can be automatically cleaned, convenient, hygienic and thorough.

3. Performance and Characteristics of RHJ-C Vacuum Homogenizer Emulsifier

1). This machine adopts the upper coaxial type two-way speed-adjustable wall-scraping mixer. The mixing speed is 0-63r / min, and the speed of the coaxial homogenizer is 0-3500r / min (frequency control).

2). This machine adopts international advanced technology, put the homogenizer in the best position, can achieve good homogenization effect; with two-way frame mixing, especially for the finished products containing powder and polymer pastes exquisite. The powerful hydraulic lifting system adopts a unique sealing device, which is more stable when it is lifted and lowered freely.

4. Performance and Characteristics of RHJ-D Vacuum Homogenizer Emulsifier

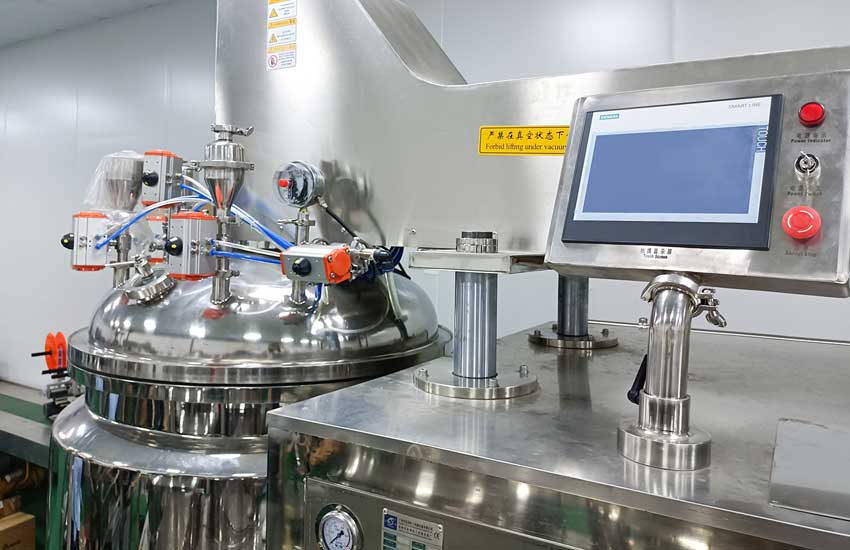

1). The operation of vacuum homogenizer cream mixer is all controlled by PLC computer and can be equipped with other facilities (such as automatic weighing system and remote monitoring system), which is widely used in some high-demand production occasions. The main components are imported, such as frequency conversion, homogenizer mechanical seal, CPU, PLC, human-machine interface touch screen, electrical components and stainless steel materials. The cream produced has good texture and fineness, which fully meets the needs of high-quality product production, and is well received by OEM companies.

2). Purpose: Vacuum emulsifying homogenizing mixer is suitable for the production of creams and creams in cosmetics factories and pharmaceutical factories, especially for the emulsification configuration of materials with high viscosity and relatively high solid content.
